SmartPro 1500 VA Rackmount/Tower Digital UPS  by  Tripp Lite
Product Size & Specification
Product Specs:
X

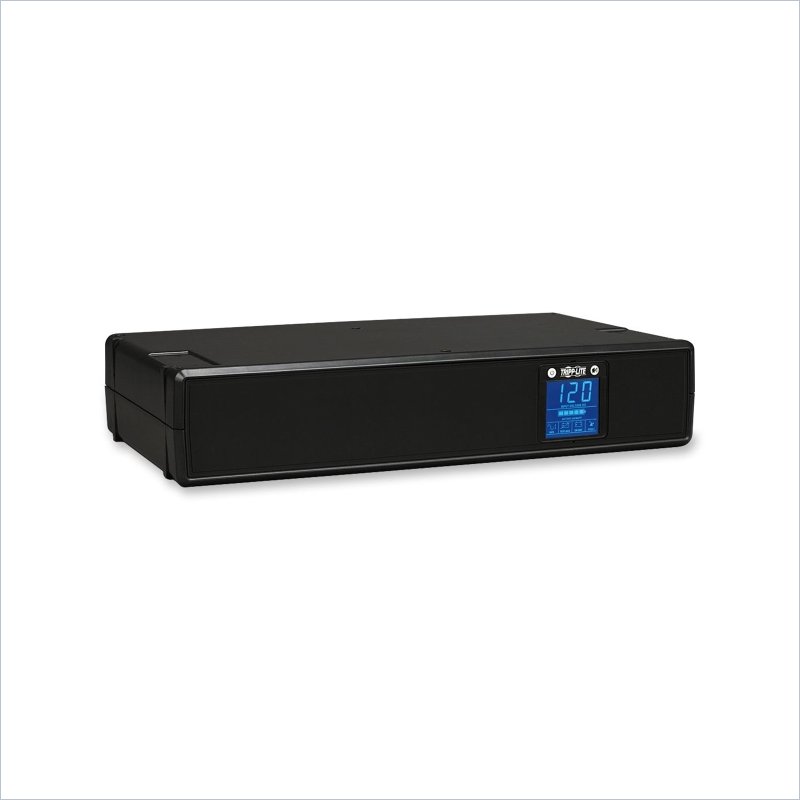

Tripp Lite SmartPro 1500 VA Rackmount/Tower Digital UPS

We're sorry, we no longer carry Tripp Lite SmartPro 1500 VA Rackmount/Tower Digital UPS on this site.


Please email us, or feel free to call us at (866) 740-9830 to talk with a customer service representative. We can help you find the product you are looking for, answer any questions, and help you place your order.

Please view other products from following categories:
Office -> Office Machines & Electronics -> Surge Protectors & Electrical Cords

Please view other products by Tripp Lite.
  • Shipping: Small Parcel - Add $6.99
    Shipping Time: Ships between
    1 and 2 days
    , estimated between
    Mon May 20 and Tue May 21
    Details:
    item number: 131796 | phone code: 57F1-E404 |
    #1 in

  • Product Series: SmartPro

    Line-Interactive Digital UPS System offers voltage regulation, surge suppression and long-lasting battery support for personal computers, network workstations, entertainment systems and more. Prevents data loss, viewing interruptions, lost recordings and loss of programming. AVR circuits regulate brownouts and overvoltages from 75V to 147V back to usable levels without using battery power. Complete power protection with support for upright tower, flat shelfmount or 2U rackmount installation. Includes 8 battery-supported outlets. Built-in USB and DB9 serial port enables optional unattended system shutdown; cabling included. HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux. Built-in single-line RJ-45 jacks offer protection for equipment with single-line tel/DSL or network Ethernet connection. 3.5 minute battery runtime with full load of 1500VA/900W and 13 minutes with half load of 750VA/450W.


    Product Type: Line-interactive UPS
    Plug/Connector Type: NEMA 5-15P
    Receptacles: 8 x NEMA 5-15R - Battery/Surge-protected
    Switching Time: 4 ms
    Dataline Protection: RJ-45 Dialup Phone/DSL line/Network Ethernet
    Protection Type:
    • Brownout
    • Over Voltage

    Load Capacity: 1.50 kVA/900 W
    Input Voltage: 110 V AC
    Input Voltage Range: 120 V AC
    Output Voltage:
    • 115 V AC Battery Operation
    • 120 V AC Nominal

    Frequency: 60 Hz Output
    Voltage Handling: ?5% Battery Regulation
    Current: 8.50 A Utility
    Waveform Type: Pulse-width Modulated Sine Wave
    Surge Energy Rating: 480 J
    Filtering: EMI/RFI
    Overload Protection:

    Input circuit breaker


    Interfaces/Ports:
    • DB-9 RS-232 Serial
    • USB

    Backup/Run Time:
    • 0.06 Hour 900 W Full Load
    • 0.22 Hour 450 W Half Load

    Battery Recharge Time: 8 Hour
    Temperature:
    • 32?F (0?C) to 104?F (40?C) Operating
    • 5?F (-15?C) to 122?F (50?C) Storage

    Humidity: 0 to 95% Non-condensing Relative Humidity
    Color: Black
    Form Factor: 2U Tower/Rack Mountable
    Power Cord/Cable: 72"
    Dimensions: 17.25" Height x 3.50" Width x 10.50" Depth
    Weight (Approximate): 29 lb
    Package Contents:
  • SmartPro 1500 VA Rackmount/Tower Digital UPS
  • USB and phone cabling
  • Mounting hardware
  • Manual with warranty information

    • Additional Information:
  • Cold Start Capable
  • Automatic Voltage Regulation (AVR)
  • LCD display indicates input voltage, battery capacity and a variety of operating conditions
  • Switches: Two front panel switches - one main on/off power switch and one dual-function "alarm cancel"/"self test" button

    • Certifications & Standards:
  • CSA
  • NOM
  • UL1778
  • FCC Class B
  • FCC part 68

    • Standard Warranty: 3 Year
