The e*LAN Racking System is an efficient, cost-effective solution for network storage. Five standard configurations meet virtually any need and ship complete in one carton. Stations feature spacious worksurfaces, full-width server shelves and multiple equipment shelves that adjust in 2" increments. Add or take away shelves as your needs change.

Features

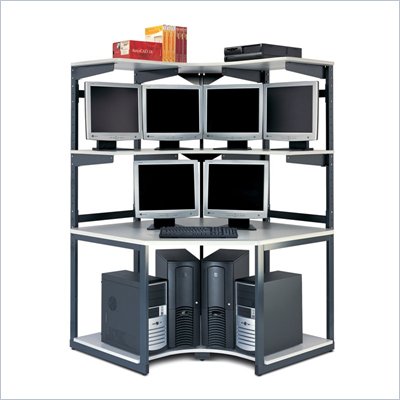

• 48" Corner Station
• Heavy-duty steel frame construction.
• Shelves adjust in 2" increments.
• 250 lb. load rating for every 24" wide section.
• 1"-thick melamine worksurfaces with durable T-mold edging.
• All stations ship complete in one carton.
• Graphite paint with Ice Gray melamine surfaces only.

Specifications

• Frame:
• 48" W corner framework
• 1" x 2" x 72"H, 14-gauge steel. Frames allow for shelf adjustment in 2" increments. Tested to 600 lbs. per 24"/36" frame without failure.
• Shelves:
• (2) 48"W x 20"D corner shelves
• (1) 46"W x 25 1/8"D corner server shelf
• Thermally-fused low-pressure laminate over 3/4"-thick particle board core. Shelves tested to 250 lbs. without failure.
• Work surfaces:
• (1) 48"W x 30"D corner work surface
• Thermally-fused low-pressure laminate over 1" thick particle board core. Post-formed tops not available.
• Color: Graphite paint finish with Ice Gray low-pressure laminate surfaces only.
• Paint Finish: High solids polyester, baked enamel finish.
